PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line

PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line


PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line

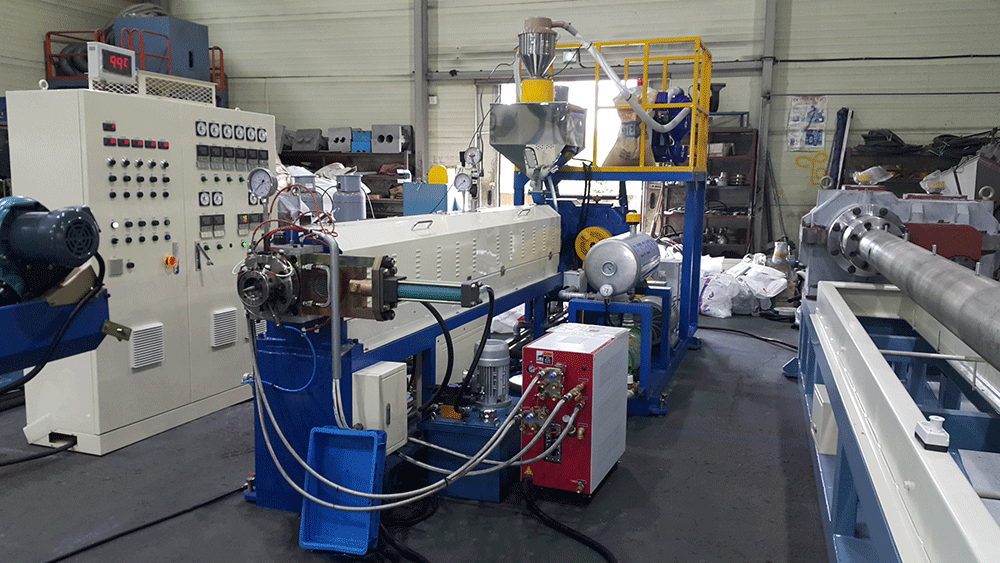

PE-Foam-Pipe-Extrusion-Line



Features of PE Foam Net Extrusion Line & Pipe Exrusion Line

PE Foam Net Extrusion Line & PE Foam Pipe Extrusion Line produces PE foam pipe, rod, and net which are excellent materials for insulation application, construction industry, and protection packaging by the economical extruding system.

  • A unique screw provides an intensive mixing and enables the production of quality foam sheet with any cell size and density.
  • Our dies, specially manufactured for its high tolerance, provide an efficient process and flexibility to create the highest quality foam to meet customer’s diverse demands.
  • Auto temp. control via PID temp. control or PLC controlled touch screen on customer’s request.
  • AC motor and variable frequency inverter control system are durable at any harsh factory environment.

pe foam net extruder

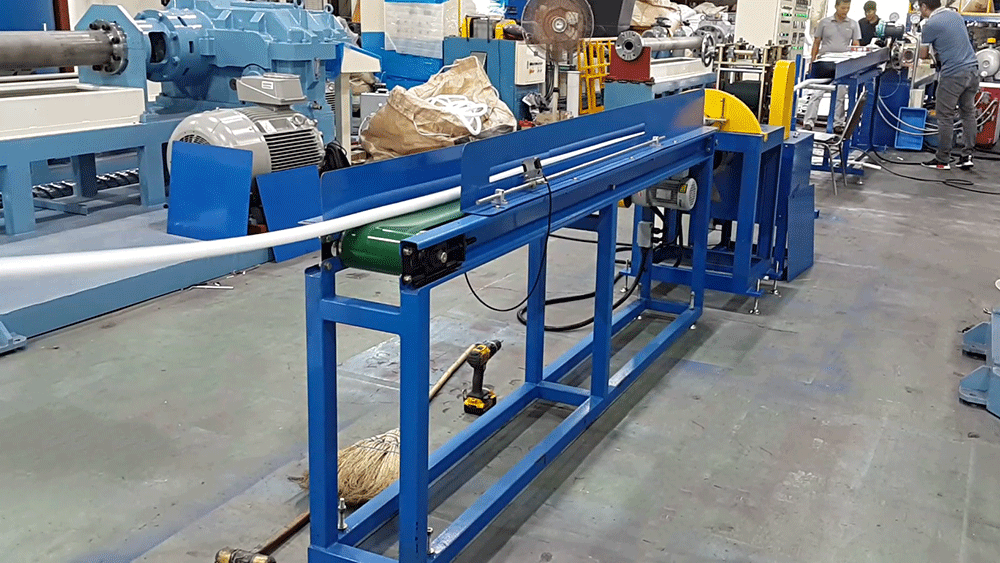

pe foam net extrusion linepe foam pipe extrusion line



Specifications of PE Foam Net Extrusion Line & Pipe Exrusion Line

 Item/Model No.  PI-PE 65  PI-PE 70  PI-PE 80
 Capacity  15-40kg/hr  20-50kg/hr  20-55kg/hr
 Max. out dia.  40mm  52mm  60mm
 Density  23-40kg/m3  23-40kg/m3  23-40kg/m3
 Electricity  55kw  55kw  60kw
 Product type  net, pipe, rod  net, pipe, rod  pipe, rod



Applications of PE Foam Net Extrusion Line & Pipe Exrusion Line




pe-foam-net-pipe-extruder

Insulation materials and agriculture and building purpose

Packing any kinds of fruits and bottles Foam pipe for insulation



EPE Foam Net Extrusion Line / EPE Foam Tube Extrusion Line with Double Head


Tube-Extruder-with-Double-Head
Tube-Extruder-with-Double-Head-2

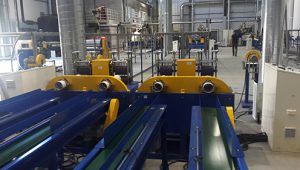

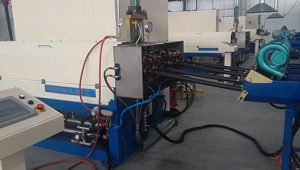

EPE Foam Tube Extrusion Line with Four Head

Tube-Extruder-with-Four-head-2Tube-Extruder-with-Four-head-2
Tube-Extruder-with-Four-head-1Tube-Extruder-with-Four-head-1
